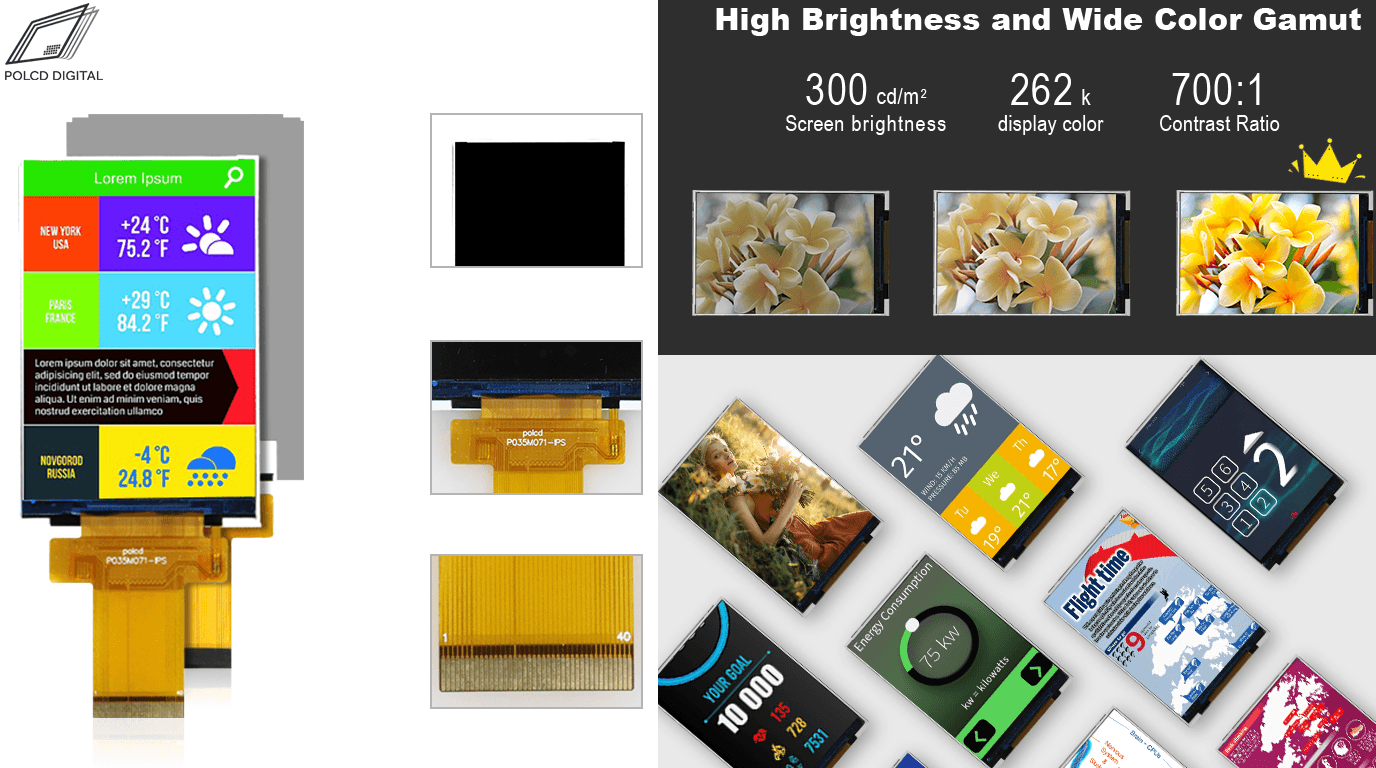

POLCD P035M071-IPS 3.5-inch TFT LCD Datasheet: Specs, Pinout & MCU Integration Guide
Designing compact Human-Machine Interfaces (HMIs) for medical monitors, smart home controllers, and industrial field tools requires balancing physical display dimensions, high optical readability, and MCU memory performance. The POLCD 3.5-inch IPS TFT LCD module (Model: P035M071-IPS) offers a sharp 320x480 resolution with a 3:2 aspect ratio, delivering full IPS wide-angle viewing and high luminance. This guide provides embedded hardware engineers and firmware developers with detailed hardware pinouts, timing register configurations, and FPC layout strategies for ESP32-S3 and STM32 platforms.
1. POLCD P035M071-IPS Master Parameter Specifications
The table below summarizes the key optical, mechanical, and electrical parameters for the P035M071-IPS display module:
| Parameter | Technical Specification | Engineering Notes / Remarks |
|---|---|---|
| Module Model | P035M071-IPS | Industrial 3.5" IPS Series |
| Active Screen Diagonal | 3.5 Inch | Compact handheld form-factor |
| Native Resolution | 320 x 480 Pixels (HVGA) | 3:2 Aspect Ratio, RGB Stripe |
| Driver / Controller IC | ST7796S / ILI9488 | Integrated GRAM framebuffer |
| Display Mode & Viewing Angle | IPS (In-Plane Switching) / Normally Black | 80°/80°/80°/80° (All Direction Viewing) |
| Luminance (Brightness) | 500 – 800 cd/m² (Customizable) | Sunlight readable outdoor options |
| Supported Interfaces | 4-Wire SPI / 8-Bit & 16-Bit MCU Parallel | Hardware configurable via IM pins |
| Active Area (W x H) | 48.96 mm x 73.44 mm | 0.153 mm x 0.153 mm pixel pitch |
| Operating Voltage | VDD = 2.8V – 3.3V, VCI = 2.8V – 3.3V | Low power logic operations |
| Operating Temperature Range | -20°C to +70°C | Industrial grade environmental tolerance |
2. System Bus Options: SPI DMA vs. 16-Bit MCU Parallel
The ST7796S controller inside the P035M071-IPS panel allows engineers to select between serial or parallel bus topologies depending on host MCU resource constraints:
- 4-Wire SPI Mode (Low GPIO Count): Ideal for microcontrollers like the ESP32-S3 or RP2040. Requires only 6 control lines (SCLK, MOSI, CS, DC, RST, and TE). Utilizing DMA line buffers of 1/10th or 1/20th frame size allows full 60 FPS refresh rates at 60 MHz to 80 MHz SPI clock rates without using large external RAM.
- 16-Bit MCU Parallel Mode (Maximum Throughput): Recommended for STM32 microcontrollers equipped with FSMC / FMC memory peripherals. Sending 16 bits of pixel data in a single clock pulse maximizes GUI rendering performance, suitable for complex 3D or animated UIs generated via LVGL.
Interface Bus Selection Topology
ESP32-S3 / ESP32
→ 4-Wire SPI (80 MHz + DMA) →
P035M071-IPS Panel
STM32F4 / STM32H7
→ 16-Bit FSMC / FMC Bus →
P035M071-IPS Panel
3. Hardware Interfacing & Anti-Interference PCB Rules
High-speed SPI clocks or fast parallel transitions across FPC cables can introduce signal reflections and high-frequency noise interference. Follow these PCB design guidelines when embedding the P035M071-IPS module:
- Damping Resistors: Place 22-ohm to 33-ohm series damping resistors on high-frequency clock signals (SCLK or WR/RD) as close to the MCU output pins as possible to suppress line ringing and EMI radiation.
- TE Pin Synchronization: Always connect the Tearing Effect (TE) pin to an external GPIO interrupt on the MCU. Tying the DMA line buffer execution directly to the TE rising edge prevents tearing during fast UI menu scrolling.
- Power Decoupling & Backlight Isolation: Connect 100nF and 10uF ceramic capacitors directly to the VDD and VCI connector pins. Keep LED backlight power traces (VLED+ / VLED-) isolated from sensitive digital data traces to eliminate PWM noise coupling.
The POLCD P035M071-IPS 3.5-inch TFT module provides embedded engineers with a reliable, high-contrast, and high-brightness solution for modern HMI products. POLCD Digital delivers complete product datasheets, 3D CAD STEP models, pre-validated LVGL display drivers, and custom PCAP touch panel integration for the P035M071-IPS module. Contact our sales and engineering support teams to request sample kits and reference evaluation boards.
