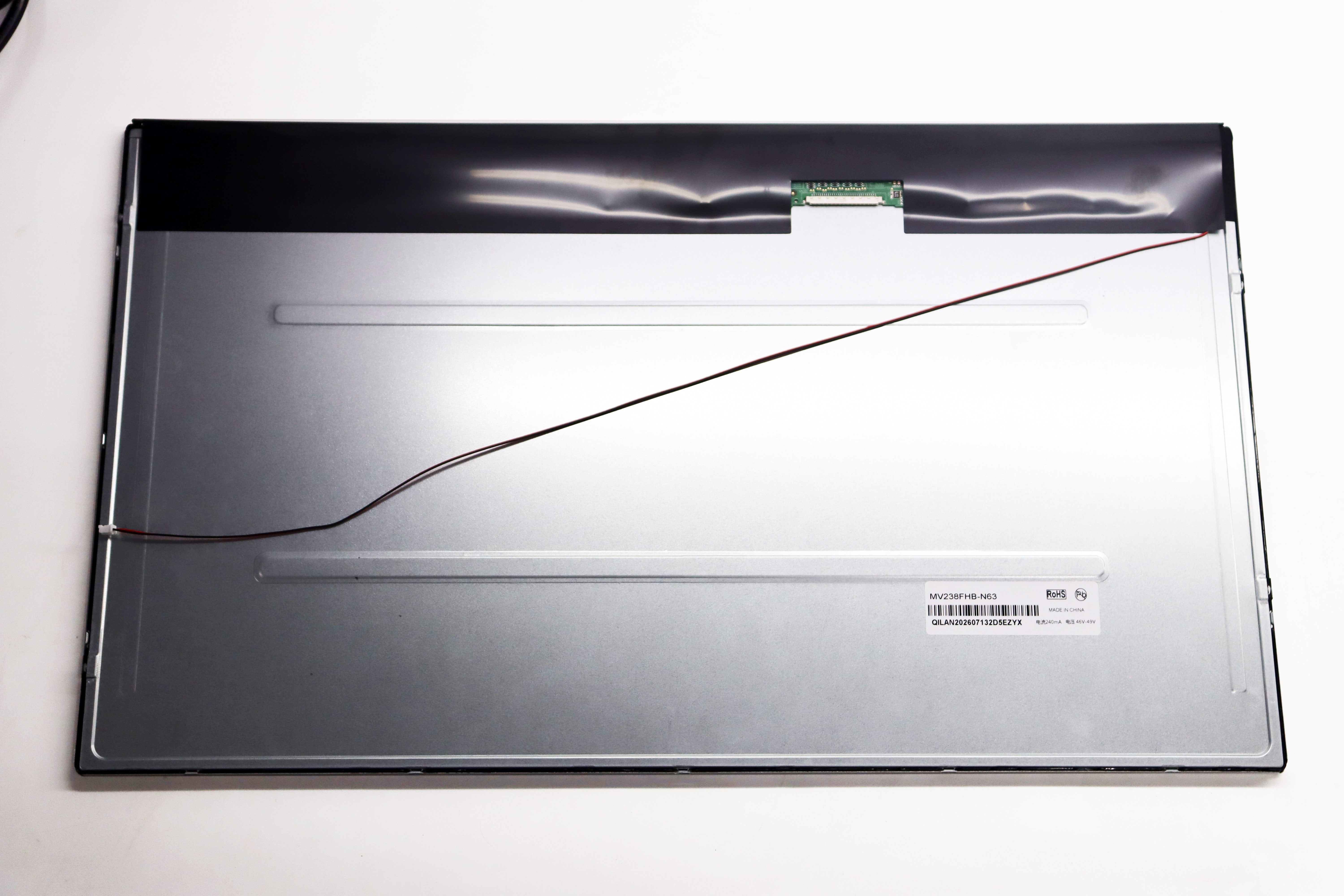

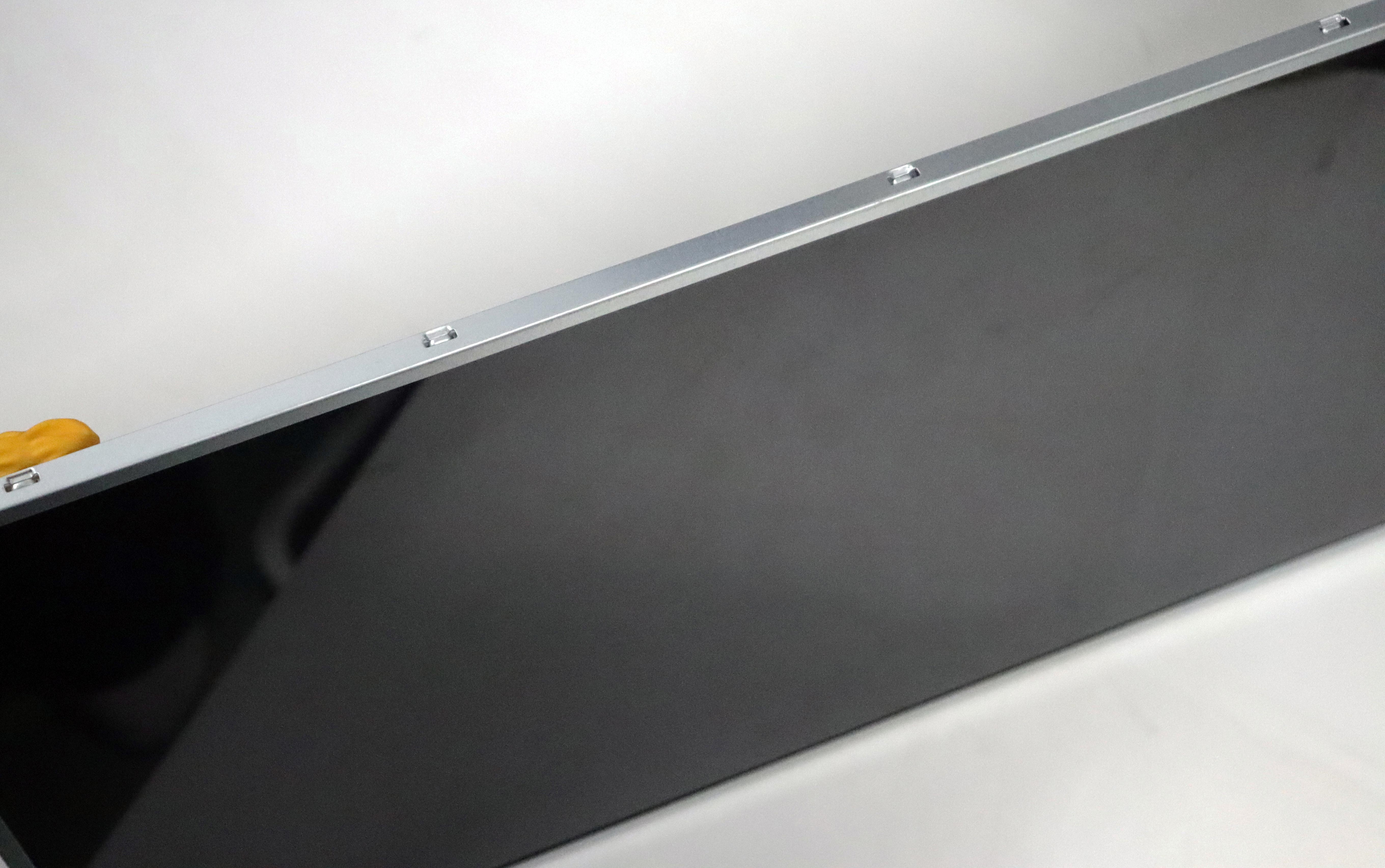

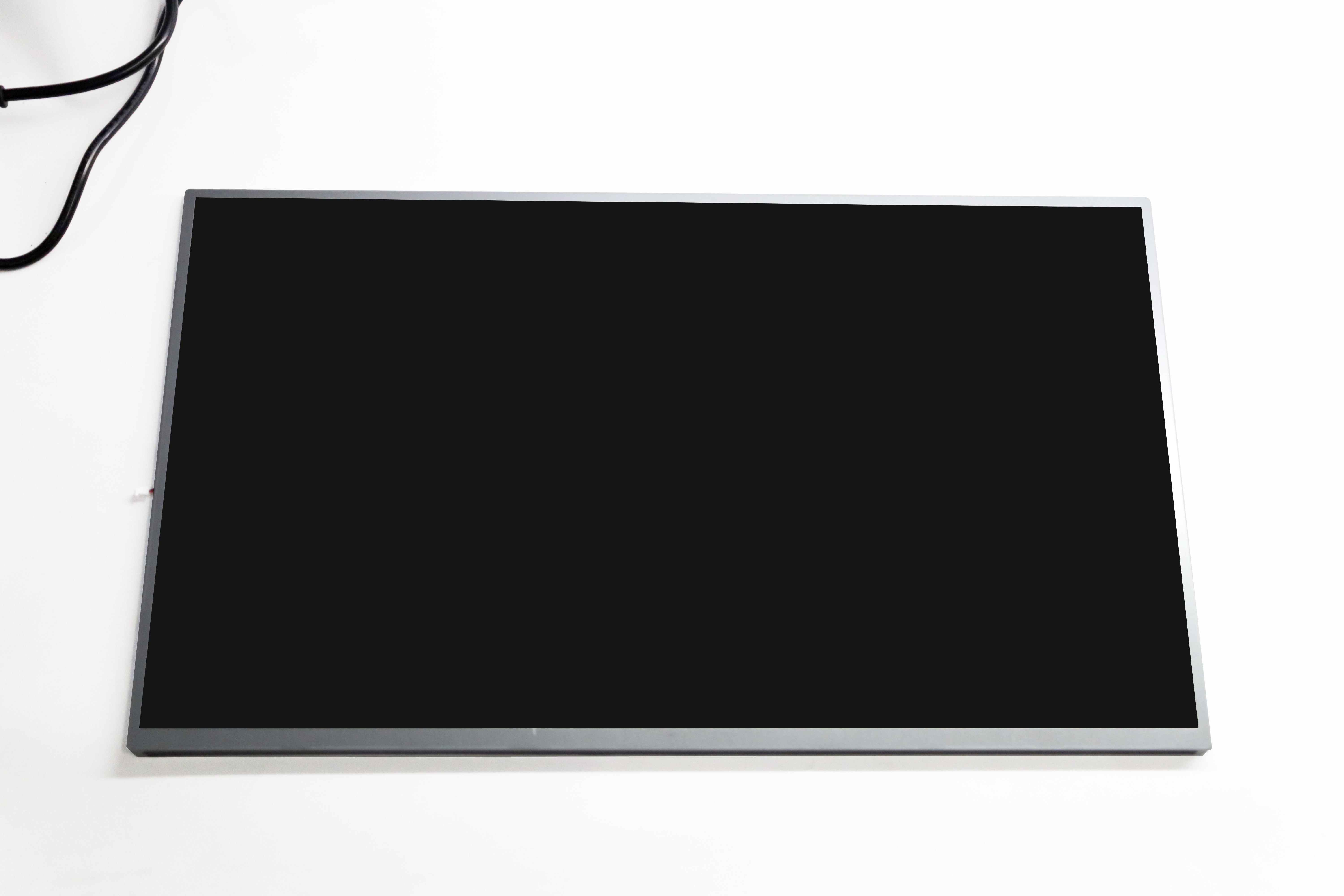

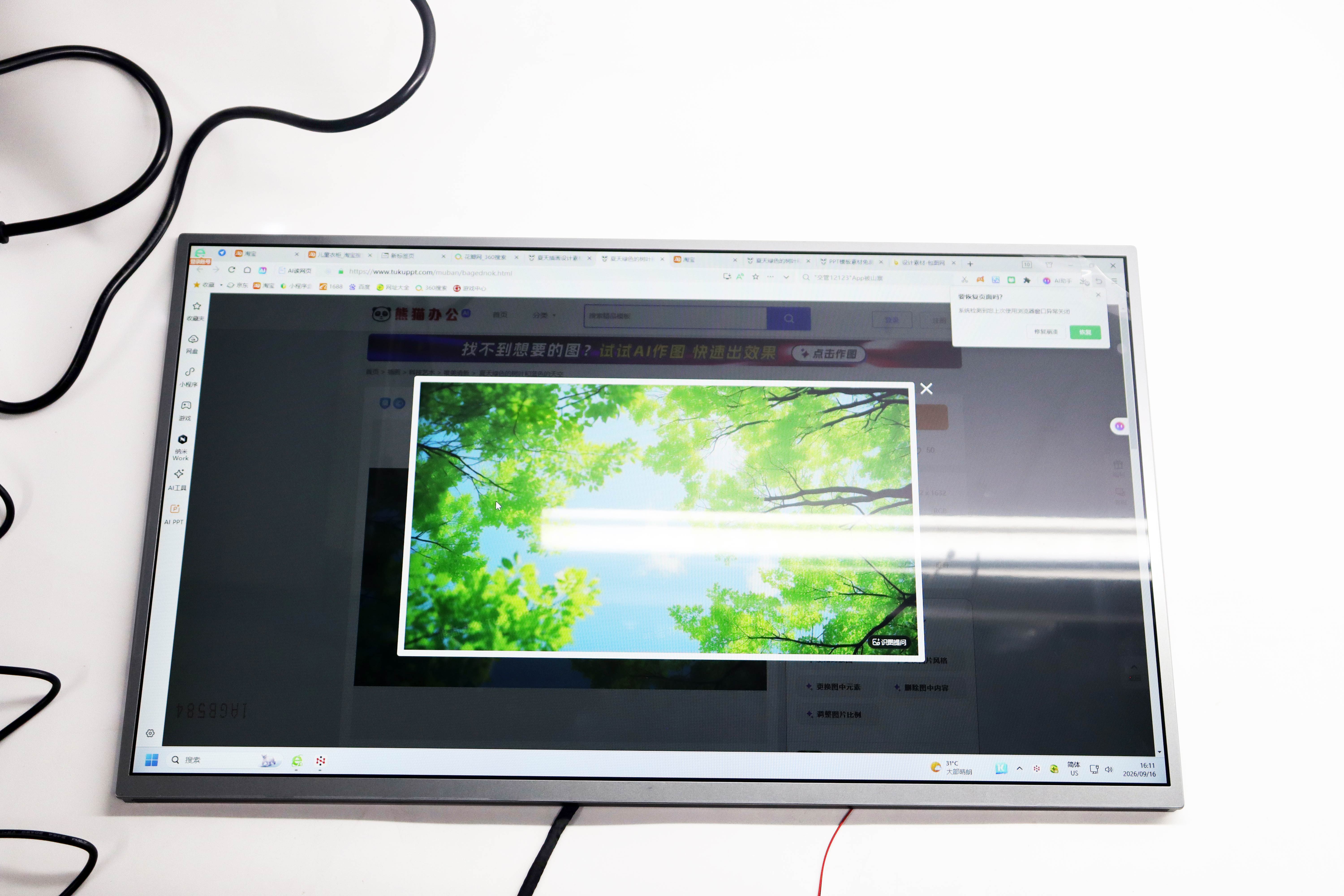

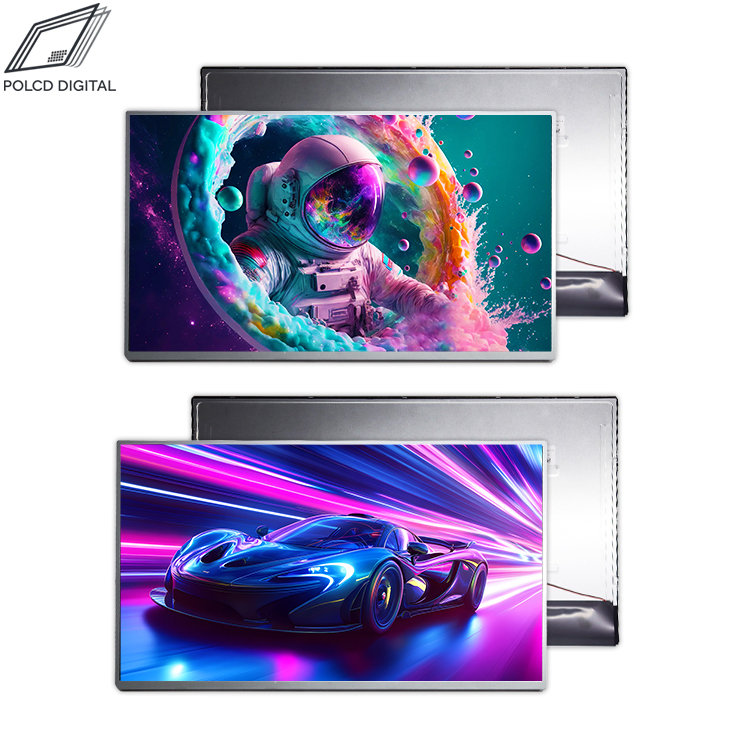

23.8 Inch Industrial FHD TFT LCD Display Module 1920x1080 LVDS 300 nits - DV238FHB-N30
In Stock
POLCD Digital
MV238FHB-N63
📥 Download Datasheet (PDF) BOE DV238FHB-N30 is a 23.8-inch diagonal A-Si TFT-LCD display module featuring...
BOE DV238FHB-N30 is a 23.8-inch diagonal A-Si TFT-LCD display module featuring Full HD (1920x1080) resolution, high contrast ratio, and wide viewing angles. Designed for reliable industrial, commercial, and desktop display applications, it delivers outstanding visual performance and stable operation.
Key Features
- Screen Size: 23.8-inch diagonal active area
- Resolution: Full HD (1920 x 1080) RGB vertical stripe
- Interface: 2-ch LVDS (30-pin, 5.0V power supply)
- Brightness & Contrast: 250 - 300 cd/m² luminance with 1000:1 high contrast ratio
- Viewing Angle: Ultra-wide viewing angles (89°/89°/89°/89° Typ.)
- Color Depth: 16.7M colors (6-bit Hi-FRC)
- Surface Treatment: Anti-Glare (Haze 25%), 3H Hard Coating
- Environmental Compliance: RoHS & Halogen Free compliant
Technical Specifications
| Model Name | DV238FHB-N30 |
| Active Area | 527.04(H) × 296.46(V) mm |
| Module Outline Dimensions | 543.08(H) × 316.72(V) × 10.2(D) mm |
| Pixel Pitch | 0.2745(H) × 0.2745(V) mm |
| Display Mode | Transmissive Mode, Normally Black |
| Response Time | 14 ms (Typ., G-to-G) |
| Backlight Lifetime | 50,000 Hours (Min.) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
Applications
- Desktop PCs & Industrial Workstations
- Slim-Size Displays for Stand-Alone Monitors
- Display Terminals for Control Systems
- Monitors for Process Controllers & HMI Interfaces
Need custom driver boards, touch panel integration, or optical bonding solutions? Contact our engineering team for customized display solutions.
