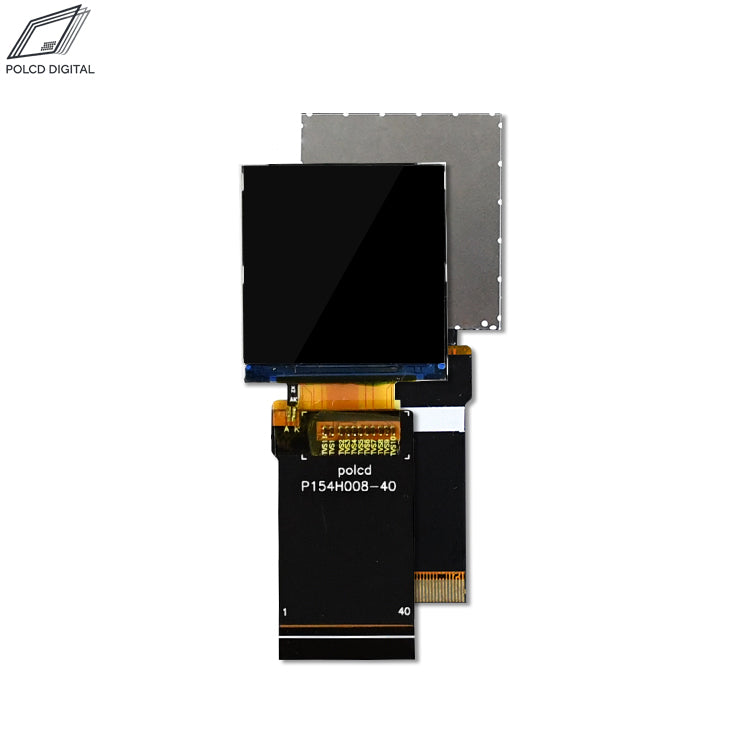

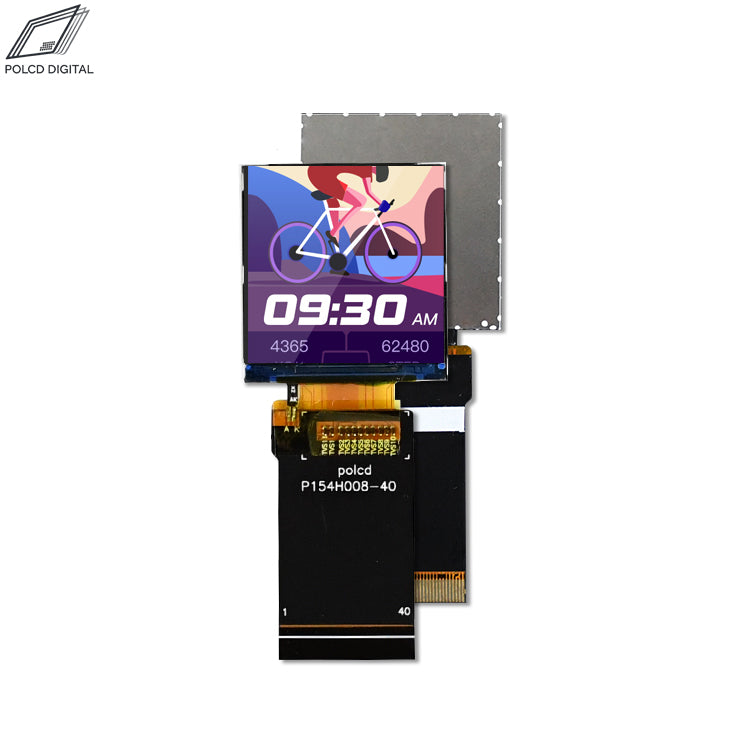

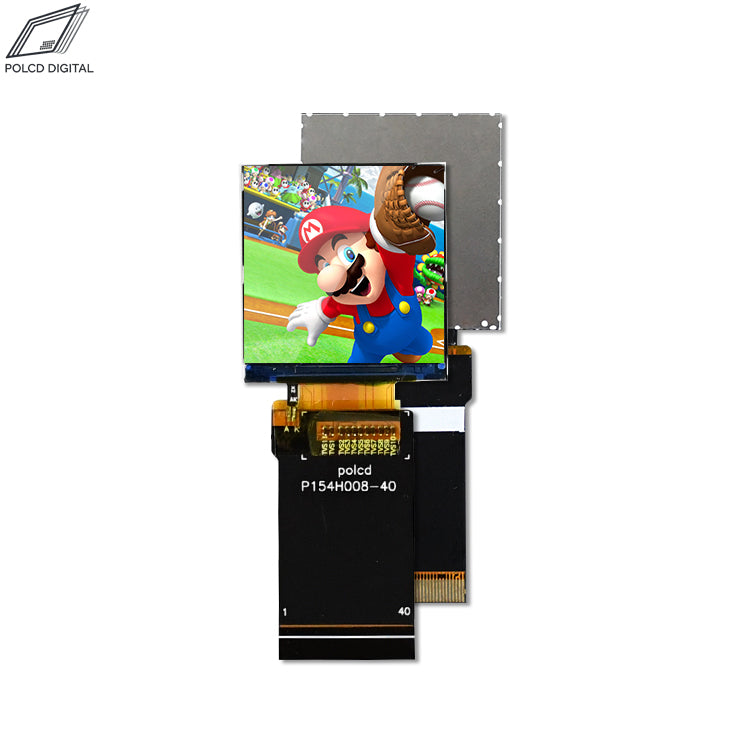

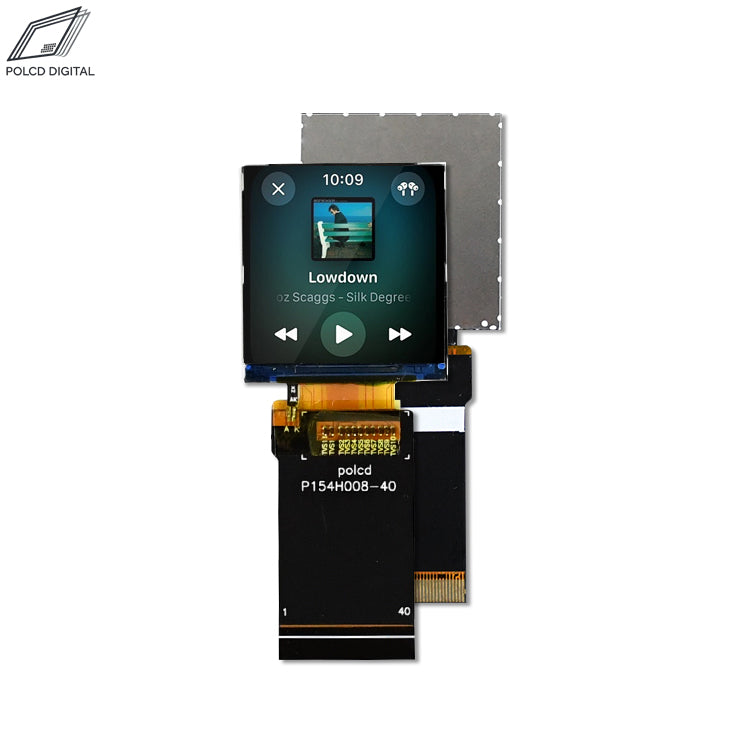

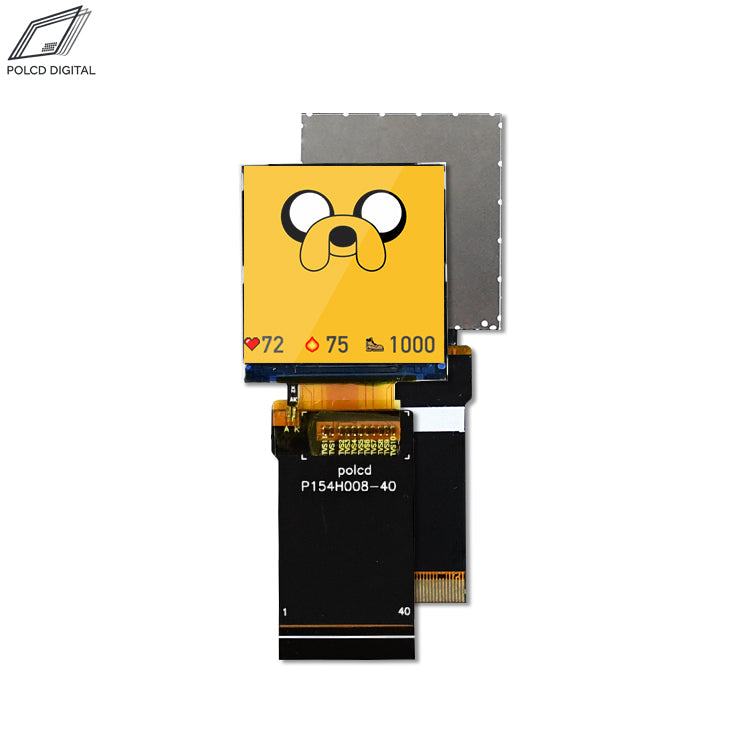

1.54" Square TFT LCD Display Module 240x240 Resolution with RGB666 Interface P154H008-40
In Stock
POLCD Digital
P154H008-40
📥 Download Datasheet (PDF) Perfect Square Aspect Ratio: Features a 27.72 x 27.72 mm active...
-
Perfect Square Aspect Ratio: Features a 27.72 x 27.72 mm active area with 240x240 resolution, making it optimized for smart thermostat dials, rotary encoders, and square wall-switch panels.
-
Ultra-High Contrast Ratio: Boasting a 1200:1 contrast ratio, this display delivers exceptionally deep blacks, vibrant 262K colors, and clear text rendering for industrial user interfaces.
-
Wide IPS Viewing Angle: Utilizing Normally Black IPS technology, the screen ensures an "ALL" direction wide viewing angle without any color shifting or gray inversion.
-
High-Speed RGB666 Interface: Equipped with a 40-pin RGB666 interface and powered by the ST7789T3 driver IC, allowing for faster data refresh rates and smoother graphical transitions.
-
Industrial Temperature Tolerance: Engineered to operate reliably between -20°C and +70°C, ensuring stable, long-term performance in demanding professional or outdoor environments.
-
B2B Customization Options: Available for flexible factory customization, including custom FPC shapes/lengths, backlight brightness enhancement, and capacitive touch panel (CTP) bonding.
Parameter:
|
Model |
P154H008-40 |
|
Screen Size |
1.54 inch |
|
Number of Pixel |
240RGB(H)x240(V) |
|
Display area |
27.72(H)x27.72(V)mm |
|
Pixel pitch |
0.1155(H)x0.1155(V)mm |
|
Pin |
40 pin |
|
Outline Dimension |
31.52x33.72x2mm |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally Black |
|
Viewing Direction(eye) |
ALL |
|
Display Color |
262K |
|
Luminance(cd/m2) |
350 nit |
|
Contrast Ratio |
1200:1 |
|
Interface |
RGB666 |
|
Back-light |
LED Side-light type |
|
Drive IC |
ST7789T3 |
|
Operation Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
