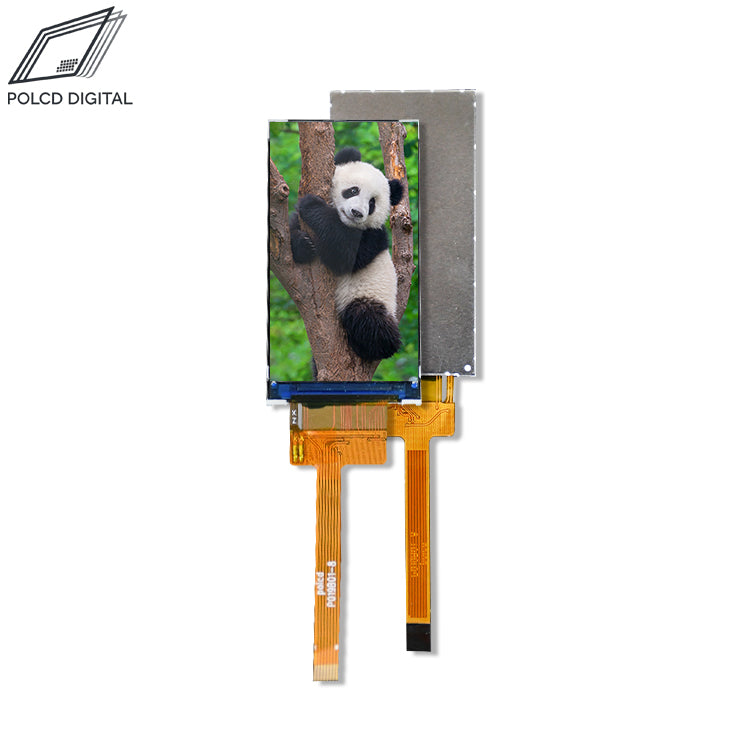

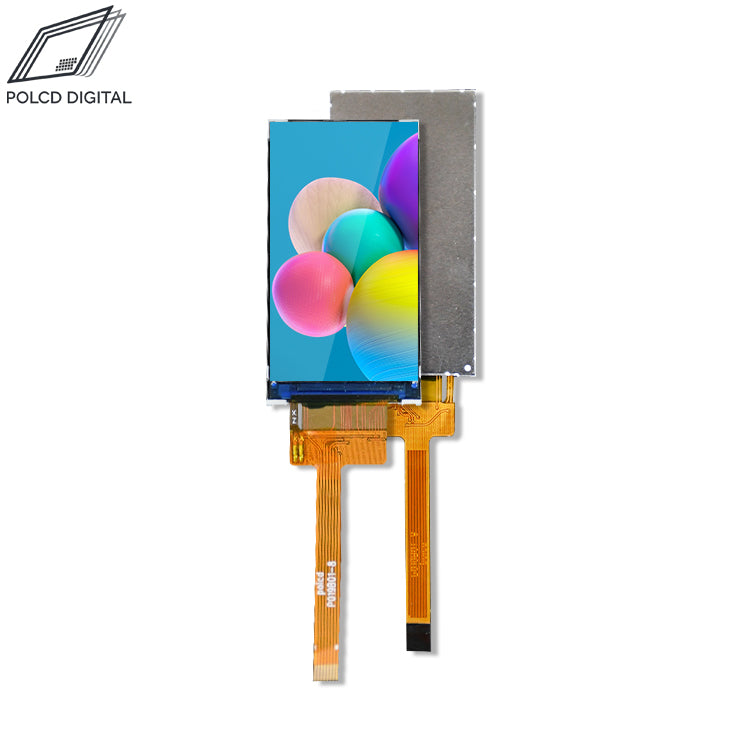

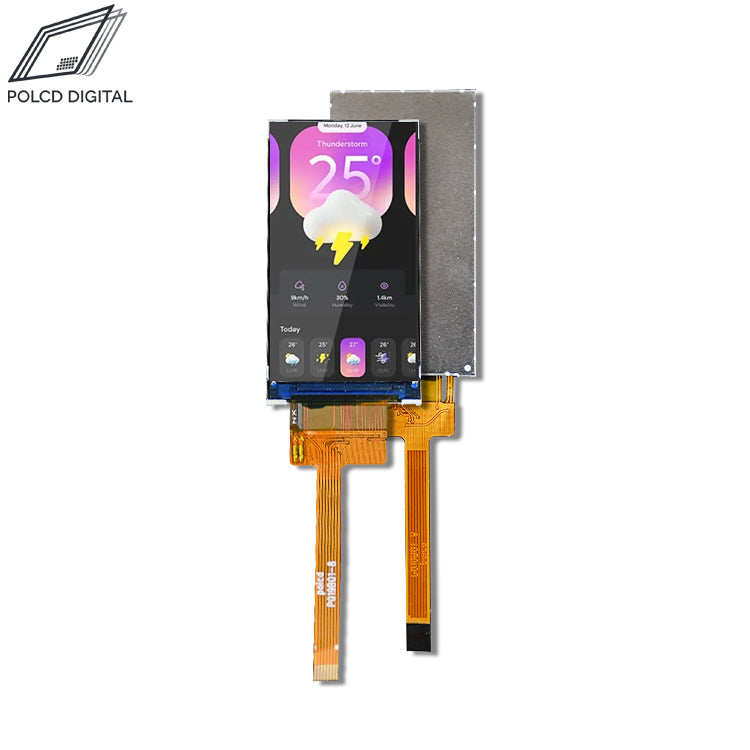

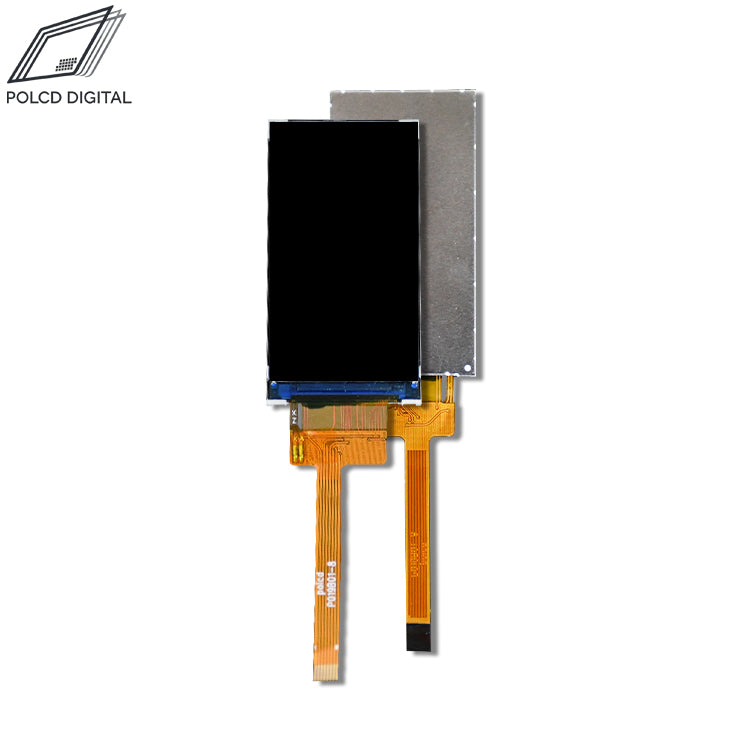

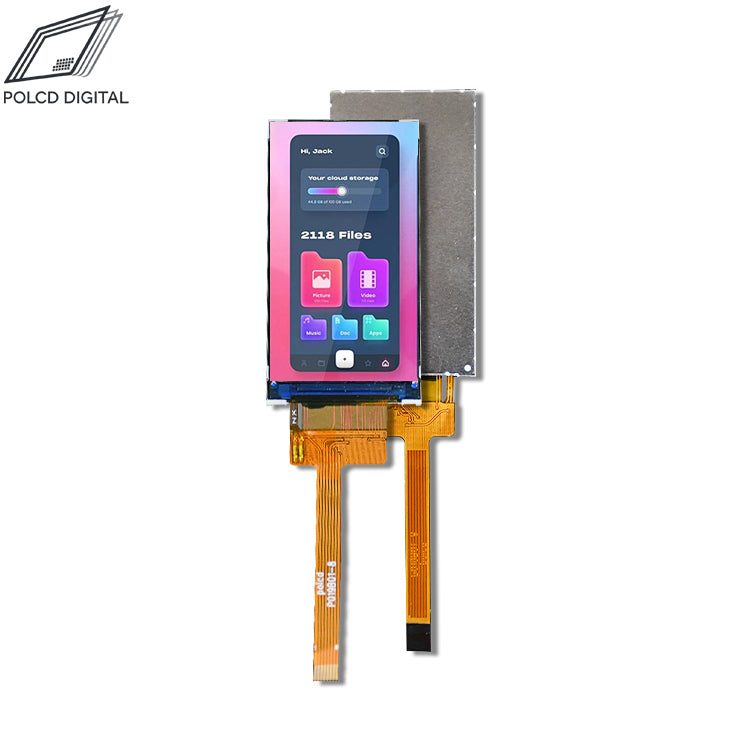

1.9" Bar Type TFT LCD Display Screen 170x320 Resolution with 4-Wire SPI Interface P019B01-8
1.9" Bar Type TFT LCD Display Screen 170x320 Resolution with 4-Wire SPI Interface P019B01-8
1.9" Bar Type TFT LCD Display Screen 170x320 Resolution with 4-Wire SPI Interface P019B01-8
1.9" Bar Type TFT LCD Display Screen 170x320 Resolution with 4-Wire SPI Interface P019B01-8
1.9" Bar Type TFT LCD Display Screen 170x320 Resolution with 4-Wire SPI Interface P019B01-8

1.9" Bar Type TFT LCD Display Screen 170x320 Resolution with 4-Wire SPI Interface P019B01-8

Request a Quote

In Stock

POLCD Digital
P019B01-8

📥 Download Datasheet (PDF) Sunlight-Readable 600-Nit Brightness: Engineered with a 600 cd/m² high-luminance backlight, this...

1.9 inch bar LCD, 1.9" sunlight readable LCD., 170x320 TFT display, 600 nits small display, 8 pin SPI TFT display, high brightness bar screen., narrow band LCD screen, P019B01-8, SPI, ST7789P3-G6 LCD module, TFT LCD

📥 Download Datasheet (PDF)

    • Sunlight-Readable 600-Nit Brightness: Engineered with a 600 cd/m² high-luminance backlight, this module provides crisp, sharp legibility under bright ambient light or direct outdoor sunlight.

    • Unique Bar Display Form Factor: Featuring a narrow 170x320 resolution and 22.7 x 42.72 mm active area, it is perfectly optimized for space-constrained vertical layouts, medical devices, and smart home appliances.

    • Simplified 8-Pin SPI Interface: Utilizes a 4-wire SPI interface with a minimal 8-pin design, significantly reducing PCB hardware routing complexity and preserving valuable host MCU I/O ports.

    • True Color IPS Technology: Powered by the Normally Black IPS mode, delivering full "ALL" direction viewing angles with consistent 262K colors and no color inversion or gray shifting.

    • Reliable ST7789P3-G6 Controller: Driven by the highly stable ST7789P3-G6 driver IC, ensuring seamless graphical synchronization, low power consumption, and long-term component availability.

    • Industrial-Grade Durability: Built for continuous operation in harsh industrial field environments with an operating temperature tolerance from -20°C up to +70°C.



    Parameter:

    Model

    P019B01-8

    Screen Size

    1.9 inch

    Number of Pixel

    170RGB(H)x320(V)

    Display area

    22.7(H)x42.72(V)mm

    Pixel pitch

    133.5(H)x133.5(V)um

    Pin

    8 pin

    Outline Dimension

    25.8x50.12x2.12±0.1mm

    Pixel arrangement

    RGB Vertical Stripe

    Display mode

    Normally Black

    Viewing Direction(eye)

    ALL

    Display Color

    262K

    Luminance(cd/m2)

    600 nit

    Contrast Ratio

    800:1

    Interface

    4W SPI

    Back-light

    LED Side-light type

    Drive IC

    ST7789P3-G6

    Operation Temperature

    -20~70℃

    Storage Temperature

    -30~80℃
