HDMI Display Controller Board for 7-Inch TFT LCD | Mini-HDMI & Type-C | Speaker & Audio Support RTD2281-V1.0NI
In Stock
POLCD Digital
RTD2281-V1. ONl
Note: This listing is for the RTD2281-V1.0NI Display Driver Controller Board ONLY. The TFT LCD...
Note: This listing is for the RTD2281-V1.0NI Display Driver Controller Board ONLY. The TFT LCD screen and touch panel are NOT included.

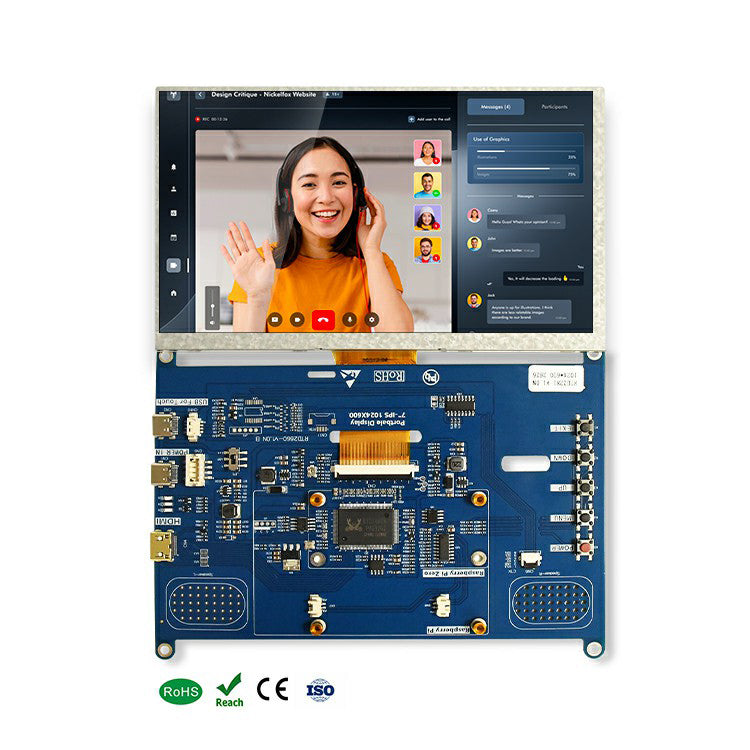

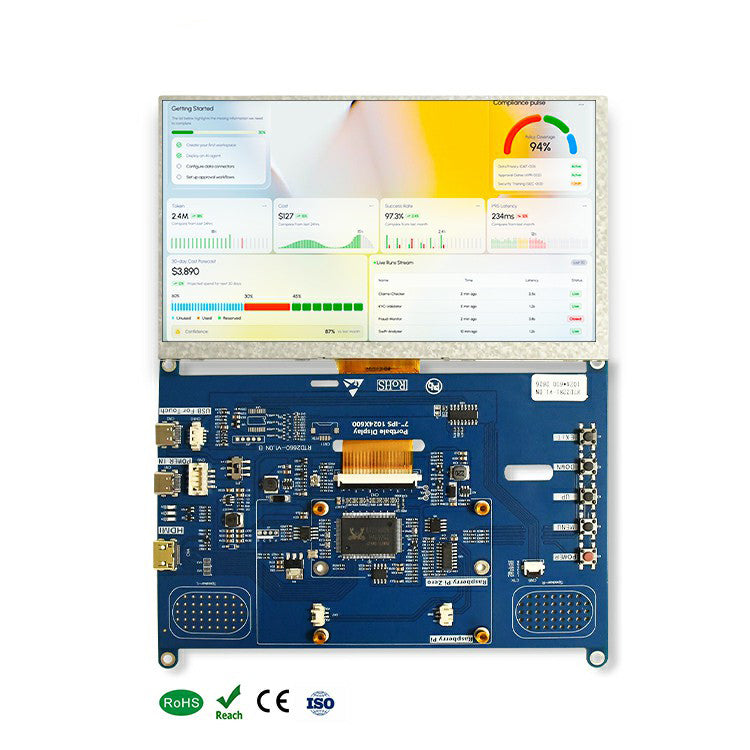

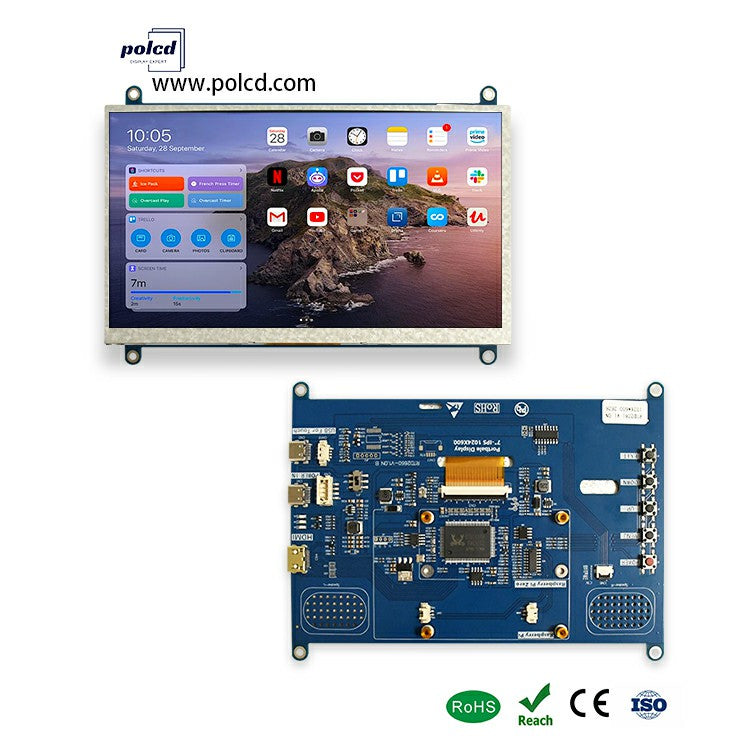

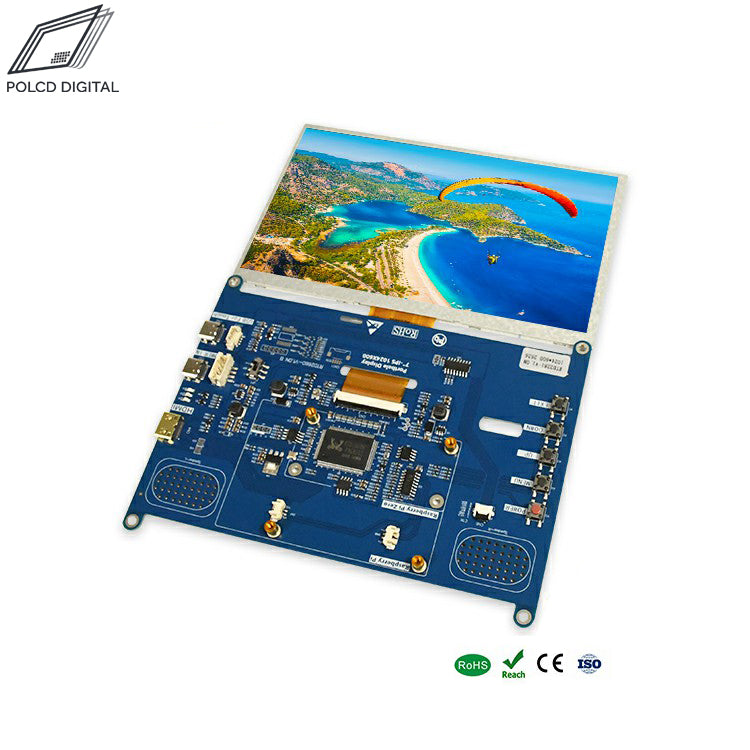

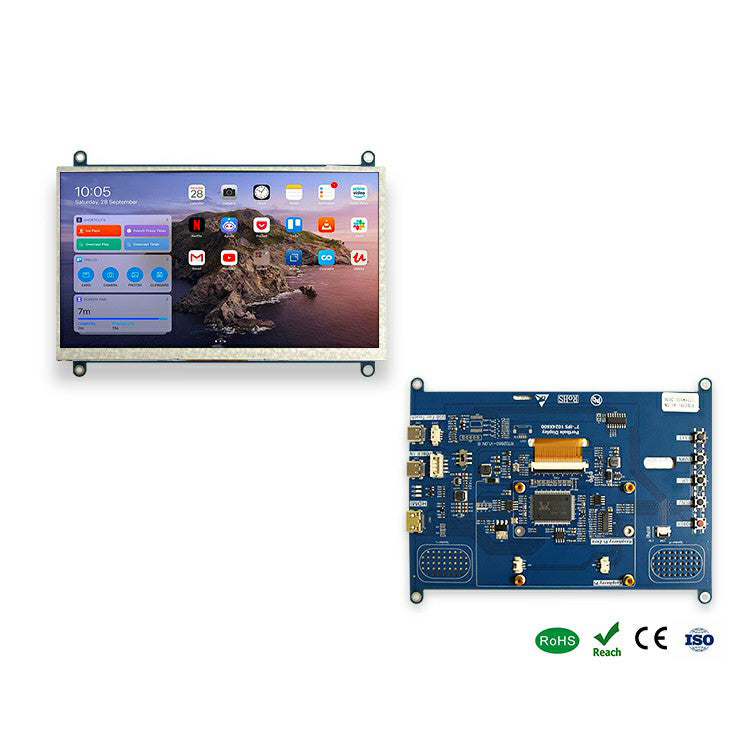

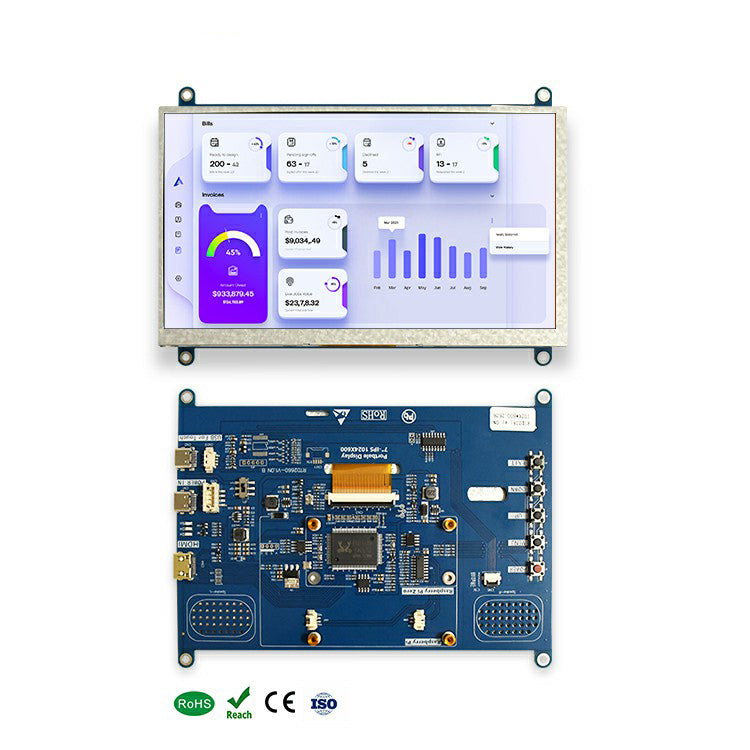

The RTD2281-V1.0NI is a high-performance, multi-functional LCD AD controller board designed for 7.0-inch TFT LCD displays[cite: 7]. Powered by the Realtek RTD2281CL main chipset, this board converts HDMI video signals (supporting input resolutions up to 1920x1080 @ 60Hz) for 50-pin FPC screen interfaces[cite: 7]. It also features integrated analog audio input, 2x1.2W speaker outputs, onboard control keys, and flexible touch screen passthrough support (configurable for 4-wire resistive or 6-wire capacitive touch)[cite: 7]. Ideal for Raspberry Pi DIY projects, portable monitors, and industrial control interfaces[cite: 7].
Key Features
- Main Processor: Built on the Realtek RTD2281CL main chipset[cite: 7].
- Display Compatibility: Designed for 7.0-inch TFT LCD display panels (3.3V panel voltage / 50-pin FPC interface)[cite: 7].
- Video Signal Input: Mini-HDMI input (CN4) or optional 20-pin FPC HDMI interface (CN13), supporting input formats up to 1920x1080 @ 60Hz[cite: 7].
- Audio & Speaker Support: Includes PC analog audio input (3.5mm / 3-pin connector) and built-in speaker output (2x 1.2W @ 4Ω)[cite: 7].
- Touch Panel Passthrough: Integrated interfaces supporting either 6-wire capacitive touch (CN6 FPC) or 4-wire resistive touch (CN11 FPC) via USB passthrough[cite: 7].
- Flexible Power Supply: Powered via Type-C (+5V DC, CN1) or optional 4-pin 2.0mm connector (CN9) with standby power under 0.2W[cite: 7].
- Onboard Keys & OSD: Built-in SMD function buttons (Power, Menu, Up, Down, Exit) supporting multi-language OSD navigation[cite: 7].
Technical Specifications
| Model | RTD2281-V1.0NI |
| Board Type | Multi-function LCD-PC AD Board |
| Main Chipset | RTD2281CL |
| Max Input Resolution | 1920 x 1080 @ 60Hz |
| Video Input Interface | Mini-HDMI (CN4) / FPC-20PIN-0.5mm (CN13 optional) |
| LCD Panel Interface | CN3 (FPC-50PIN-0.5mm pitch) |
| Panel Power Voltage | 3.3V |
| Audio Output | 2 x 1.2W (4Ω) Speaker Outputs (CN7/CN8) |
| Touch Interface | 6-Wire Capacitive (CN6) or 4-Wire Resistive (CN11) |
| Power Input | +5V DC via Type-C (CN1) or 4-Pin 2.0mm (CN9) |
| Operating Temperature | -10°C to +60°C |
Interface Breakdown
- CN1 / CN9: +5V DC Power Input (Type-C / 4-Pin 2.0mm)[cite: 7]
- CN2 / CN10: USB Touch Signal Output to Host/PC[cite: 7]
- CN3: 50-Pin FPC Interface for 7.0-inch LCD Panel Connection[cite: 7]
- CN4 / CN13: Mini-HDMI Signal Input / FPC 20-Pin HDMI Input[cite: 7]
- CN5 / CN14: PC Audio Signal Input[cite: 7]
- CN6 / CN11: Capacitive (6-Pin) or Resistive (4-Pin) Touch Panel Inputs[cite: 7]
- CN7 / CN8: Left & Right Speaker Output Terminals (2x 1.2W)[cite: 7]
- K1–K5: Onboard Tactile Switches (Exit, Down, Up, Menu, Power)[cite: 7]
Applications
- Raspberry Pi and mini-PC secondary monitor setups[cite: 7]
- 7.0-inch TFT LCD panel signal driving[cite: 7]
- Custom embedded system HMI display consoles and industrial touch screens[cite: 7]
Package Contents
1x RTD2281-V1.0NI LCD Controller Board (Note: Screen, touch panel, and connecting cables are sold separately.)
