As smart handheld terminals, healthcare monitors, dual-screen IoT gateways, and industrial field tools demand real-time data visualization alongside multi-day battery autonomy, multi-display system architectures are gaining rapid traction. Pairing a high-refresh-rate TFT LCD with an ultra-low-power Electronic Paper Display (E-Ink / ACeP / Kaleido) allows hardware engineers to bridge the gap between rich, interactive touch UIs and zero-power static status displays. However, balancing power budgets, thermal dissipation, and shared driver resources requires rigorous system-level planning.

1. Optical & Operational Trade-Offs: TFT LCD vs. E-Ink

TFT LCD and E-Ink displays utilize fundamentally distinct physical mechanisms to render visuals, making their operational profiles completely complementary in dual-screen configurations:

• TFT LCD Advantage: Full 16.7M color gamut, fluid animations, instantaneous touch responsiveness, and independent readability in absolute darkness via backlight LEDs.
• E-Ink Advantage: Bistable memory retains static graphics without holding register state or consuming battery current. Superior optical legibility in direct outdoor sunlight.

2. Power Budgeting & Dynamic Display Switching

In a dual-screen IoT handheld powered by a single Li-ion cell (e.g., 2000 mAh), continuous active operation of a TFT display backlight will drain the system in 6 to 10 hours. Integrating an E-Ink display on the secondary housing shell enables intelligent host MCU power-state routing:

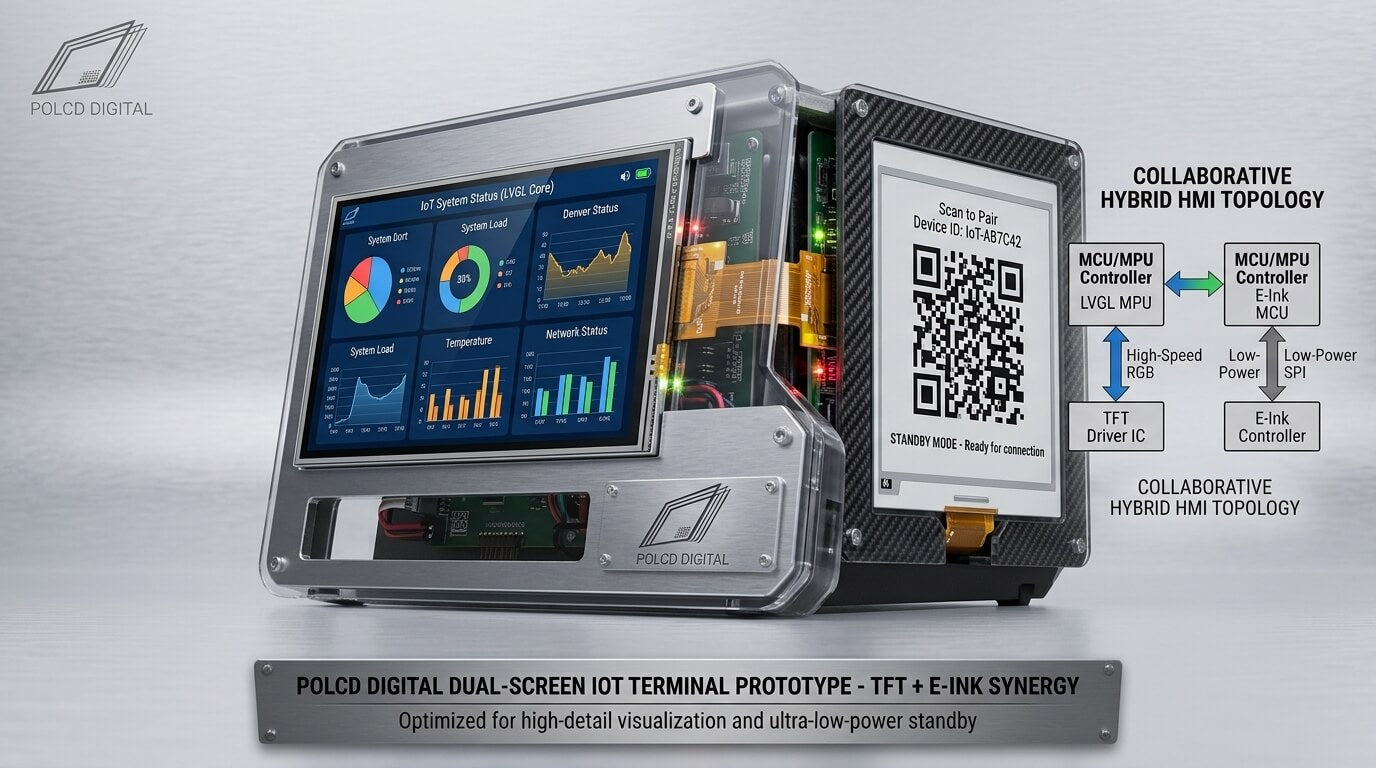

1. Active Interaction Mode: When motion sensors (IMU) detect hand pick-up or button presses, the host MCU (e.g., ESP32-S3 or NXP i.MX RT) powers on the TFT LCD display via high-side MOSFETs, streaming high-frame-rate UI graphics via RGB/SPI bus.
2. Static Snapshot Transfer: Upon user inactivity timeout, the host controller renders key system status data (e.g., QR codes, network status, battery level) into a single framebuffer frame, transmits it over SPI to the E-Ink controller, and issues a full refresh waveform.
3. Ultra-Low Power Standby: Once the E-Ink waveform update finishes, the MCU completely powers down the TFT backlight driver, turns off display rail LDOs, and drops the MCU into Deep Sleep mode. The E-Ink screen maintains the static dashboard indefinitely at zero current draw.

3. Thermal Management & Optical Stack Considerations

Compact dual-screen devices place strict physical limitations on thermal dissipation. Backlight LEDs on mid-size TFT panels generate concentrated heat, while E-Ink electrophoretic microcapsules are highly sensitive to thermal ambient shifts.

• TFT Heat Dissipation: Backlight LEDs running at high brightness (500+ cd/m²) concentrate thermal buildup behind the LCD panel. Hardware layouts must route copper thermal vias into PCB ground planes or use graphite heat spreaders to prevent localized hotspotting.
• E-Ink Temperature Sensitivity: Electrophoretic ink viscosity changes with temperature. Operating E-Ink panels near unmitigated TFT backlight heat sources can cause ghosting or uneven clearing. Maintaining thermal isolation between the displays is critical.
• Optical Bonding (OCA) Integration: Utilizing Full Optical Bonding (OCA) on the primary TFT screen reduces internal air-gap thermal resistance, allowing heat to dissipate forward through the cover glass rather than trapping thermal energy inside the enclosure.
•

Designing dual-screen IoT hardware requires balancing high-speed visual engagement with continuous zero-power legibility. POLCD Digital engineers custom high-efficiency TFT LCD modules and optical bonding stackups optimized for low-power embedded designs. Contact our engineering team to evaluate sample modules and reference schematic architectures.
