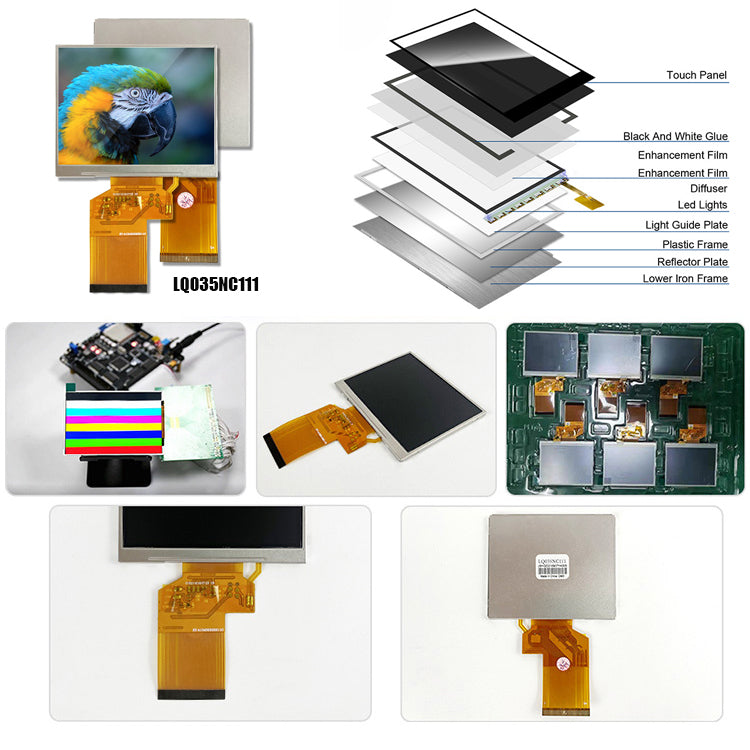

Industrial Display ODM Cost Breakdown: From PCB Development to Mold Tooling Fees

Why ODM Cost Visibility Matters

When hardware teams first approach an ODM partner for a custom industrial display module, the initial quotation is almost always incomplete. A per-unit price is quoted, the NRE line sits as a lump sum labeled "tooling," and the real cost structure remains opaque until—often—midway through prototype validation, when change orders start arriving.

This guide exists to change that dynamic. By understanding where money flows in an industrial LCD ODM program, procurement leads and hardware engineers can negotiate better, plan cash flow accurately, and avoid the most common budget overruns that derail small-volume industrial display projects.

"The unit price is the easy number to compare. The NRE structure is where project economics are actually won or lost." — POLCD Digital Engineering Team

ODM vs. OEM: A Cost Architecture Primer

Before diving into line items, it is worth clarifying the model. In the display industry, the terms are used inconsistently. For this guide:

Most industrial display projects in the 500–20,000 unit/year range are best served by the ODM model. The reference design provides a validated baseline; customization budget is spent on the features that actually differentiate the end product.

The Five Cost Phases of an Industrial ODM Program

An industrial LCD ODM program moves through five distinct cost phases. Each phase has a predictable expenditure profile and its own risk surface. Understanding all five before signing an LOI is essential.

• 01

  Requirements Engineering & Feasibility Study

  Interface definition, mechanical envelope confirmation, regulatory pre-screening (CE/FCC/UL), and electrical interface mapping. The ODM partner reviews your system-level spec and issues a formal feasibility report with cost and schedule ranges.

  $0 – $2,000 (often waived) 1 – 2 weeks Risk: scope creep from incomplete spec
• 02

  PCB & PCBA Development (Schematic → Gerber → Prototype)

  This is typically the largest NRE line item for a module with a custom carrier board. Covers schematic capture, PCB layout, DFM review, first-article fabrication, component sourcing, SMT assembly, and board-level bringup. For a 3.5-inch display PCBA with touchscreen controller integration, expect 2–4 board revisions before electrical sign-off.

  $3,000 – $12,000 4 – 8 weeks Risk: interface mismatch with host SoC
• 03

  Mechanical Design & Mold Tooling

  3D modeling of the module housing, front frame, and gasket geometry in SolidWorks or CATIA. CNC prototype (soft tooling) for fit-check validation, followed by aluminum or P20 steel hard tooling for production. Mold complexity scales sharply with snap-fit features, gasket channels, and insert molding requirements.

  $4,000 – $25,000 5 – 12 weeks Risk: mold revision fees after fit-check failure
• 04

  Optical & Electrical Validation (EVT → DVT)

  Engineering Validation Test (EVT) and Design Validation Test (DVT) cycles. Covers photometric measurement (luminance uniformity, contrast ratio), touch accuracy calibration, EMI pre-scan, temperature cycling (per IEC 60068), and reliability bake testing. Each cycle typically produces 10–30 units.

  $2,000 – $8,000 4 – 8 weeks Risk: DVT failure requiring PCB respin
• 05

  Production Readiness & First Article Inspection (PVT)

  Production Validation Test (PVT): manufacturing yield analysis, AOI and X-ray inspection setup, test fixture engineering, and final product certification preparation. Output is a production-ready BOM, manufacturing traveler, and approved supplier list (ASL) for long-term supply continuity.

  $1,500 – $5,000 2 – 4 weeks Risk: test fixture cost is often overlooked

Typical NRE Budget: 3.5-Inch Industrial LCD Module

The following table summarizes typical NRE cost ranges for a production-representative 3.5-inch HVGA industrial display module project with PCAP touch integration and a custom overmolded front frame. Ranges reflect standard industrial-grade requirements; regulatory certification adds cost on top.

Mold Tooling: The Cost Driver You Must Understand

Mold tooling is the cost line that most surprises hardware teams from software-centric organizations. Unlike PCB development, which scales modestly with complexity, mold costs follow a steep nonlinear curve based on geometry, cavity count, and material requirements.

Key Variables Driving Mold Cost

For a typical 3.5-inch module front frame with a rectangular window aperture, snap-fit mounting clips, and a flat gasket groove, a single-cavity aluminum soft tool will cost $4,000–7,000 and deliver 5,000–30,000 acceptable shots. A production-grade P20 steel tool for the same geometry runs $10,000–16,000 but amortizes over hundreds of thousands of cycles.

PCB Development: Where Technical Decisions Drive Costs

The PCB development cost for a 3.5-inch industrial display module scales primarily with interface complexity. A module using an SPI driver IC with a 4-wire interface is straightforward; a module with a 24-bit parallel RGB interface requiring careful impedance-controlled routing and EMI filtering is substantially more work.

PCB Cost Drivers Ranked by Impact

• Layer count: A 2-layer board for an SPI display costs 30–50% less to fabricate and design than a 6-layer board for an RGB interface with ground planes and power islands
• Controlled impedance routing: Differential pairs (MIPI DSI, LVDS) require impedance-controlled stackups—adds cost to both design and fabrication
• Touch controller integration: PCAP controllers (Goodix GT911, FocalTech FT5426) add 3–5 components and a separate I²C or SPI routing sub-net
• Power management topology: LED boost converter design, whether integrated or discrete, significantly impacts BOM cost and PCB area
• Connector strategy: FPC connectors to the LCD panel and touch panel require precise footprint placement and strain-relief features
• EMI containment: Shield cans, ferrite beads, and TVS arrays add cost but are frequently required for IEC/CE compliance

Unit Cost vs. NRE: The Break-Even Analysis

NRE investment makes economic sense only when unit volumes are sufficient to amortize the upfront costs. The analysis is straightforward but is frequently skipped in the enthusiasm of early-stage product planning.

The table uses the total NRE range of $14,300–$42,800 and assumes a 3-year program life. At 5,000 units per year (15,000 total), the NRE amortization per unit drops below $3 at the low end—economically invisible against even a modest unit savings versus an off-shelf module.

The Hidden Costs Nobody Quotes Upfront

Beyond the standard NRE lines, several cost categories are consistently underquoted or omitted in ODM proposals. Awareness of these protects your budget from post-contract surprises.

• Mold revision fees: Each dimensional change to a steel mold after T1 (first shot) typically costs $500–$3,000 depending on the modification. Budget 1–2 revisions as a baseline
• Regulatory certification: CE marking (EMC + Safety) runs $3,000–$8,000 per product variant; UL/cUL adds $4,000–$12,000. These are separate from NRE and often excluded from ODM quotes
• Optical bonding NRE: If optical bonding is required, jig fabrication and bonding process qualification add $1,500–$4,000 to the program
• Long-lead component qualification: If the LCD panel or touch controller has a second-source qualification requirement, that testing adds cost and schedule risk
• Engineering Change Order (ECO) management: Post-DVT design changes are billed at engineering hourly rates—$80–$150/hr at most ODM partners
• Sample freight & customs: DHL/FedEx prototype shipments from China add $200–$600 per build iteration; often occurs 4–8 times during development

POLCD Customization Case Studies

Budget Preparation Checklist: Before You Issue an RFQ

• Define the display interface requirement precisely: SPI, parallel RGB, MIPI DSI, or MCU bus—vague specs generate vague quotes
• Establish the regulatory certification requirements (CE, FCC, UL, IEC 60601, MIL-STD) and get a separate certification cost estimate from a test lab before signing the ODM contract
• Ask the ODM partner for a tooling ownership clause: who owns the mold if the relationship terminates?
• Request a BOM cost breakdown at target volume, not just the unit price—hidden margin can be buried in component markups
• Budget explicitly for 2 PCB revisions and 1 mold revision; treat anything better as a bonus, not a plan
• Confirm the driver IC's availability and lifecycle status—an end-of-life IC discovered at DVT is a costly surprise
• Clarify what "sample delivery" means: bare PCBAs only, or fully assembled modules in mechanical housing?
• Ask for a line-item NRE schedule with payment milestones tied to deliverables—not front-loaded lump sums
