0.96 inch TFT LCD Display 80x160 Resolution SPI Interface for Wearable Devices P096H001

Product Overview

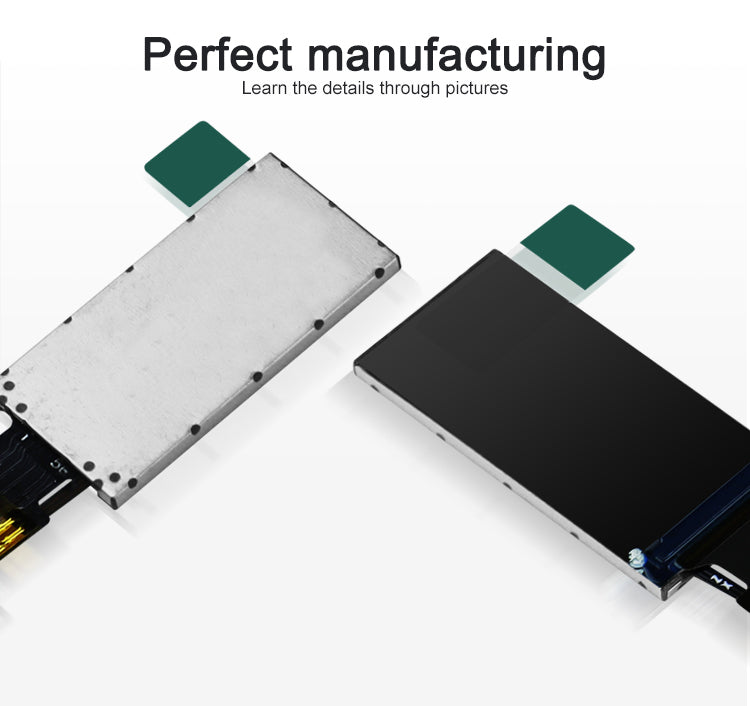

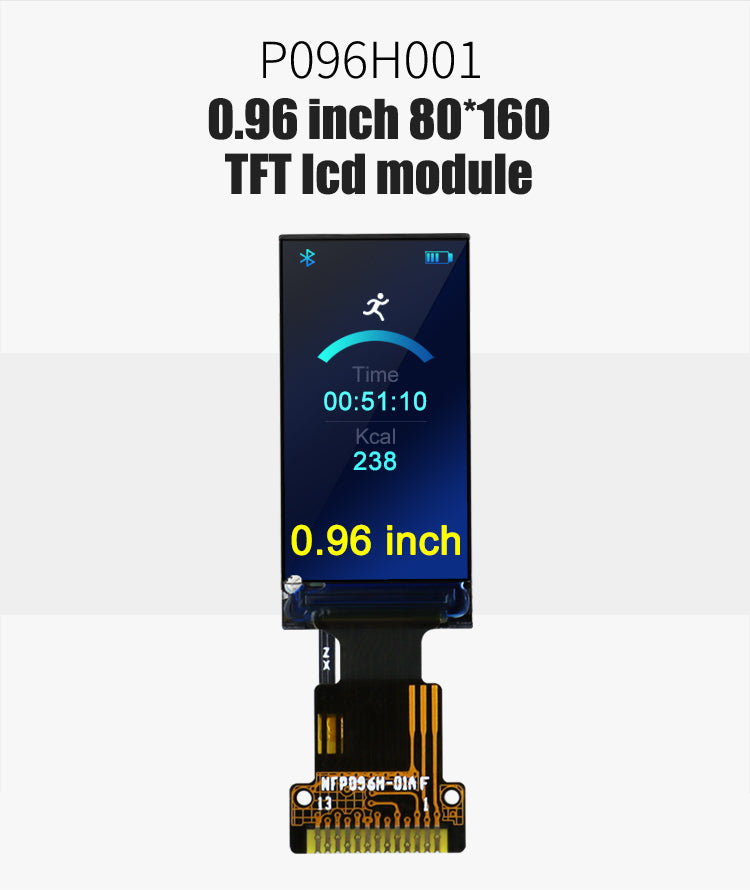

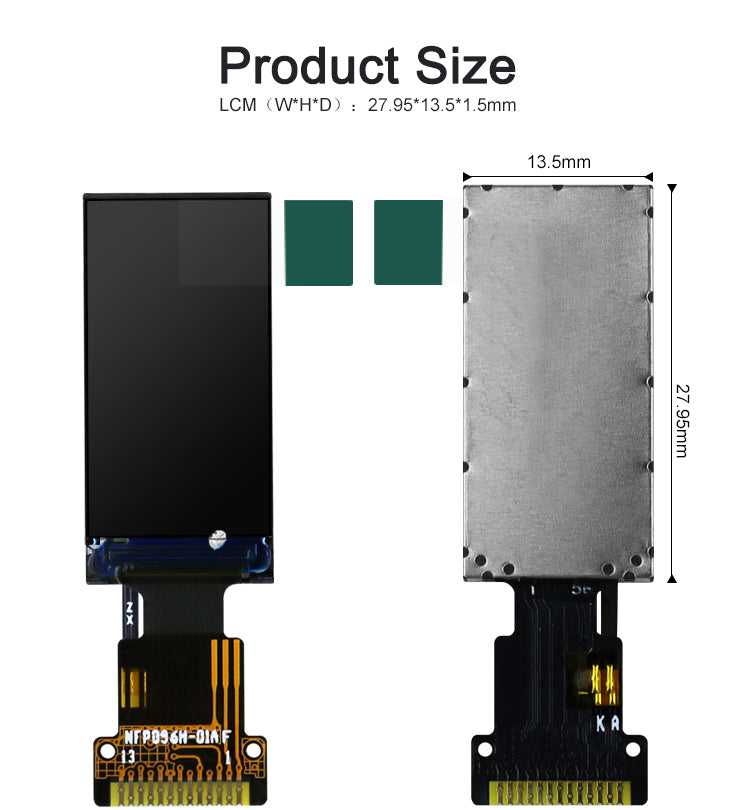

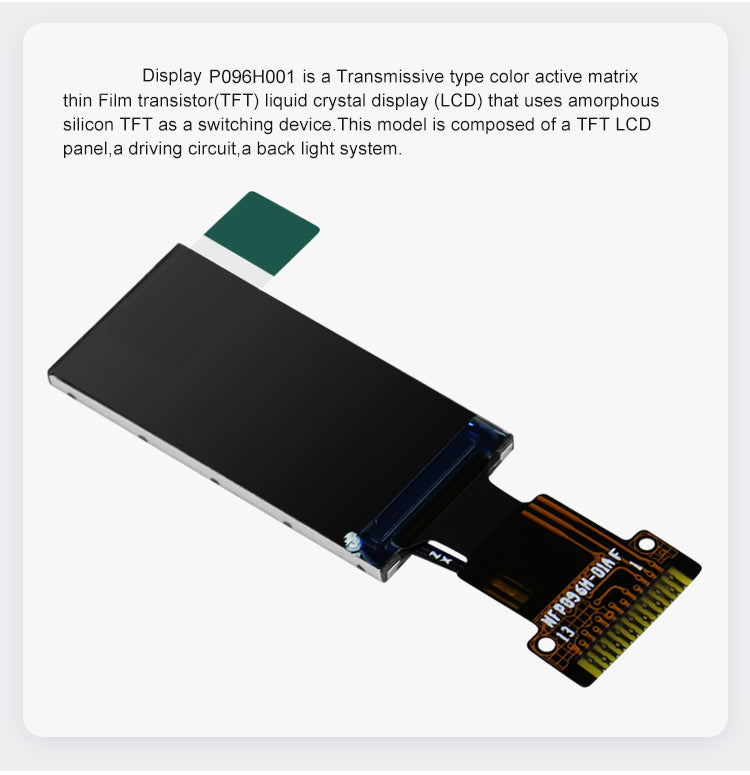

This 0.96" TFT LCD display module delivers a resolution of 80RGB(H)×160(V) at 400 nit luminance via a 4-line SPI interface on a 13-pin connection, with a module outline of 13.5(H)×27.95(V)×1.5(D)mm and an active area of 10.8(H)×21.7(V)mm. The display mode is Normally Black with all-direction viewing angle coverage, driven by an ST7735S IC, and the module operates from −20°C to +70°C. Target applications include smartwatch secondary displays, IoT sensor nodes, wearable health monitors, and compact industrial indicator panels where PCB area and GPIO count are the binding constraints.

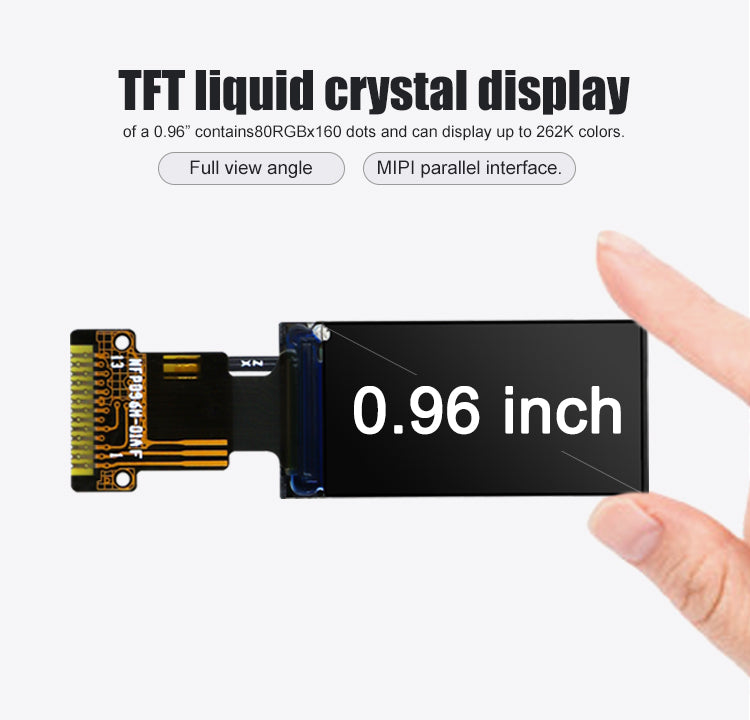

Pixel arrangement is RGB Vertical Stripe with a dot pitch of 0.135(H)×0.1356(V)mm — effectively square pixels. At 1.5mm total depth and 13.5×27.95mm footprint, the module is among the smallest in the TFT LCD category and fits directly into wristband and badge-form-factor enclosures.

Interface and GPIO Requirements

The SPI TFT LCD module uses a 4-line SPI bus: SCLK, MOSI, CS, and D/C (data/command select), plus RST for hardware reset and a separate backlight control pin — 6 signal lines in total from the 13-pin connector. There is no MISO line; the ST7735S is write-only in standard operation. This makes it compatible with any MCU or SoC that exposes a hardware SPI peripheral, including ATmega328P (Arduino Uno), STM32F1/F4, ESP32, RP2040, and nRF52 series. Bit-banged software SPI is also viable given the 80×160 frame size, though hardware SPI at 16–32 MHz is recommended for smooth animation.

The remaining 7 pins on the 13-pin connector carry VDD (logic supply), VDDI (I/O voltage), LEDK/LEDA (backlight cathode/anode), and ground references. Confirm the logic voltage level (typically 3.3V for ST7735S) against the host MCU's IO voltage before connecting; a 5V MCU GPIO requires a level shifter to avoid exceeding the IC's maximum input voltage.

Display Mode and Viewing Angle

The Normally Black display mode renders the panel black when unpowered and produces high contrast between dark backgrounds and lit pixels — the configuration preferred for UI designs that use dark themes with bright text or icons, as is common in smartwatch and wearable interfaces. Unlike Normally White panels that turn white on power loss, a Normally Black module presents a neutral, screen-off appearance that is less disruptive in wearable contexts.

The all-direction (full-angle) viewing coverage distinguishes this 0.96-inch TFT module from TN panels restricted to a 6 o'clock or 12 o'clock optimal viewing direction. In wrist-worn or handheld devices where the screen orientation relative to the viewer changes continuously, the all-direction characteristic maintains consistent contrast and color across oblique angles without the grayscale inversion that TN panels exhibit at off-axis positions.

Luminance and Dot Pitch

Luminance is 400 nit, which provides adequate brightness for indoor use and diffuse-outdoor environments. At this screen size — active area 10.8×21.7mm — the display will not be legible in direct sunlight without shading or an anti-reflective surface treatment, as ambient illuminance in direct sun (50,000–100,000 lux) exceeds the panel's reflective tolerance. For outdoor wearable applications that require sunlight readability, evaluate modules with transflective panels or higher luminance ratings.

The dot pitch is 0.135(H)×0.1356(V)mm — near-square, with a less than 0.3% aspect-ratio deviation. UI assets designed with square-pixel assumptions render without distortion, which simplifies font rendering and icon design. The effective pixel density at this pitch is approximately 187 ppi, sufficient for legible 6–8pt text in standard embedded UI frameworks such as LVGL or emWin.

ST7735S Driver IC

The ST7735S is a single-chip TFT LCD controller with an integrated 132×162×18-bit frame buffer, supporting display resolutions up to 132×162 at 18-bit (262K) color. This module uses an 80×160 subset of that buffer. The IC handles all display refresh internally after frame data is written over SPI; the host MCU does not need to sustain a continuous pixel clock, which is a key advantage in low-power MCU designs where the processor enters sleep between display updates.

The ST7735S supports partial display mode, allowing the host to update a defined window within the frame buffer without rewriting the full frame. This reduces SPI transaction time and power consumption in applications that update only a portion of the screen — for example, a clock face that refreshes the second-hand region every second without redrawing the background. Open-source ST7735S drivers are available for Arduino (Adafruit ST7735 library), ESP-IDF, STM32 HAL, and MicroPython, reducing driver development time to configuration rather than implementation.

Power Consumption Considerations

TFT LCD modules at this size class consume power in two distinct paths: the display logic (VDD/VDDI, driven by the ST7735S) and the backlight (LEDK/LEDA). The logic supply current is low — typically in the low-milliamp range during active display, with a sleep-mode current in the microamp range when the ST7735S is put into sleep mode via the SLPIN command. The backlight is the dominant power consumer; at 400 nit, backlight current depends on the LED drive circuit configuration and is not fixed by the panel alone.

For battery-powered designs, the two primary power reduction strategies are: (1) PWM-dimming the backlight to reduce average LED current below the full-brightness level; and (2) issuing the ST7735S SLPIN command during periods when the display is not needed, which powers down the display logic while retaining frame buffer contents. Wake-up from sleep requires the SLPOUT command followed by a 120ms delay before the next display command, per the ST7735S datasheet. Size the battery against the sum of MCU active current, backlight LED current at the intended duty cycle, and ST7735S active current to determine runtime.

Wearable and IoT Applications

The 13.5×27.95×1.5mm module outline fits the display cavity of standard 0.96" smartwatch band tooling and most wristband PCB layouts. The 4-line SPI LCD module interface requires only 4–6 GPIO lines from the host MCU, leaving the majority of GPIO and SPI peripherals available for sensors (accelerometer, heart-rate optical sensor, BLE radio). In nRF52840-based wearable designs, the SPI peripheral can share the bus with the display and a flash chip using separate CS lines, reducing pin count further.

IoT sensor nodes that require a local status display — temperature loggers, CO₂ monitors, flow meters — use 0.96" modules because the footprint adds minimal area to a CR2032 or AA-battery-powered PCB. The module's operating range of −20°C to +70°C covers most indoor industrial and HVAC monitoring environments. For outdoor IoT deployments below −20°C, evaluate the liquid crystal response time degradation in cold conditions before specifying this panel.

Industrial Indicator Applications

In compact industrial control equipment, 0.96" TFT LCD display modules serve as local parameter indicators on PCB assemblies where a larger panel is not mechanically feasible. Typical use cases include motor drive status displays, PLC digital I/O indicators, and fieldbus node address displays where two to four lines of text and a status icon are sufficient.

The Normally Black mode is preferred in industrial indicator applications because a power-loss state that defaults to black is unambiguous — operators interpret a black screen as "off" rather than a blank or fault condition. The all-direction viewing angle ensures the display is readable regardless of the enclosure mounting orientation, which varies in panel-mount and DIN-rail installations. The −20°C lower operating limit covers unheated enclosures in most temperate industrial environments; for sub-zero ambient deployments, pre-heat the enclosure or specify a wide-temperature LC formulation if available.

Selection Comparison

In the sub-1-inch display module category, the primary alternatives to TFT LCD are OLED and monochrome segment LCD. OLED modules at 0.96" (typically SSD1306-based, 128×64 monochrome) offer lower power consumption in dark-UI scenarios and higher perceived contrast, but are limited to single-color or dual-color output, have a finite pixel lifetime under static images, and are generally more expensive per unit. Monochrome segment LCDs consume less power than both but cannot render arbitrary graphics.

Within the 0.96" TFT LCD module category, the main differentiation axes are resolution (80×160 vs. 128×128 vs. 80×160 in different aspect ratios), driver IC (ST7735S vs. ST7789 vs. GC9A01 for round panels), interface (SPI vs. parallel MCU), and display mode (Normally Black vs. Normally White). This module's 80×160 portrait-aspect resolution is matched to narrow wristband form factors; square 128×128 variants suit watch-face layouts. Confirm the aspect ratio against the UI layout before finalizing the selection.

Frequently Asked Questions

• Is this module compatible with Arduino, ESP32, and Raspberry Pi?

  Yes. The ST7735S SPI interface is supported by hardware SPI peripherals on Arduino Uno/Nano (ATmega328P at 8 MHz SPI), Arduino Mega, ESP32 (up to 80 MHz SPI — set DCLK at 27 MHz or below for reliable operation with long wires), Raspberry Pi (via SPI0/SPI1 at 3.3V logic), and RP2040. For Arduino, the Adafruit ST7735 and ST7789 library works directly with this module after setting the correct screen dimensions (80×160) and offsets in the initialization call. For MicroPython on ESP32 or RP2040, the st7735 driver available in the MicroPython community repository supports this resolution. Note that the module operates at 3.3V logic — a 5V Arduino Uno requires a logic-level shifter on SCLK, MOSI, CS, D/C, and RST lines.
• What is the frame rate achievable over SPI, and is it sufficient for animation?

  At an SPI clock of 27 MHz, transferring a full 80×160 frame at 16-bit color (2 bytes per pixel) requires 80×160×2×8 = 2,048,000 bits, or approximately 76ms per frame — yielding about 13 fps for full-screen redraws. At 40 MHz SPI (within ST7735S spec; verify with your host), full-frame rate rises to approximately 20 fps. For smooth animation, use the ST7735S partial update window (CASET/RASET + RAMWR) to redraw only the changed region — a 40×40 pixel animation region at 27 MHz updates in approximately 5ms, enabling 60+ fps in that zone. This is the standard approach in smartwatch and wearable UI frameworks such as LVGL, which implements dirty-region tracking automatically.
• How does the 13-pin connector map to MCU signals? Is a breakout board required?

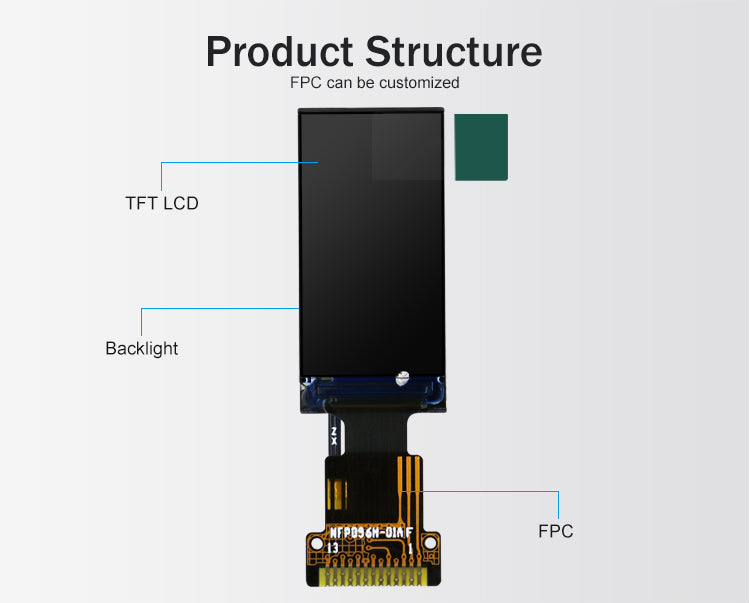

  The 13-pin connector on this module is typically a 0.5mm or 1.0mm pitch FPC or a ZIF connector depending on the module variant — confirm the connector type and pitch in the mechanical drawing before PCB layout. The pin assignments include: GND, VDD (3.3V), SCLK, MOSI, RES (reset), D/C (data/command), CS, LEDK, LEDA, and multiple GND/VDD pins. For prototyping, breakout boards with a matching FPC socket and 2.54mm header are available from module distributors and simplify connection to development boards. For production PCB integration, route the FPC connector footprint directly onto the host PCB and ensure the FPC bend area is within the module's rated bend radius.
• What UI frameworks support this module, and how much RAM does rendering require?

  LVGL (Light and Versatile Graphics Library) is the most widely used embedded UI framework for ST7735S-based modules and supports full or partial frame buffer modes. A full 80×160 framebuffer at 16-bit color requires 80×160×2 = 25,600 bytes (25 KB) of RAM — within the capacity of STM32F103 (20 KB SRAM, requires partial buffer mode) and comfortably within ESP32 (520 KB SRAM) or RP2040 (264 KB SRAM). emWin (Segger) and ucGUI also support ST7735S via the SPI display driver layer. For bare-metal implementations without a UI framework, the ST7735S datasheet provides the CASET/RASET/RAMWR command sequence for direct pixel writes; the Adafruit GFX library provides hardware-independent drawing primitives on top of this sequence.
• What are the MOQ, packaging format, and typical lead time?

  This TFT LCD module is a standard catalog item typically held in stock, with sample quantities (1–20 pcs) available for prototype bring-up. Production MOQ and pricing tiers vary by monthly volume; contact the sales team with your estimated annual consumption to receive a formal quotation. Packaging is typically anti-static bag with foam tray for samples; reel or tray packaging for SMT-compatible variants. Confirm the connector type (FPC vs. through-hole header vs. solder-pad) when ordering, as the same panel is available in multiple connector configurations that are not mechanically interchangeable. For high-volume orders (≥1,000 pcs/month), confirm last-time-buy policy and alternative source options to manage supply continuity risk.
